SKU: OSD-SVC205

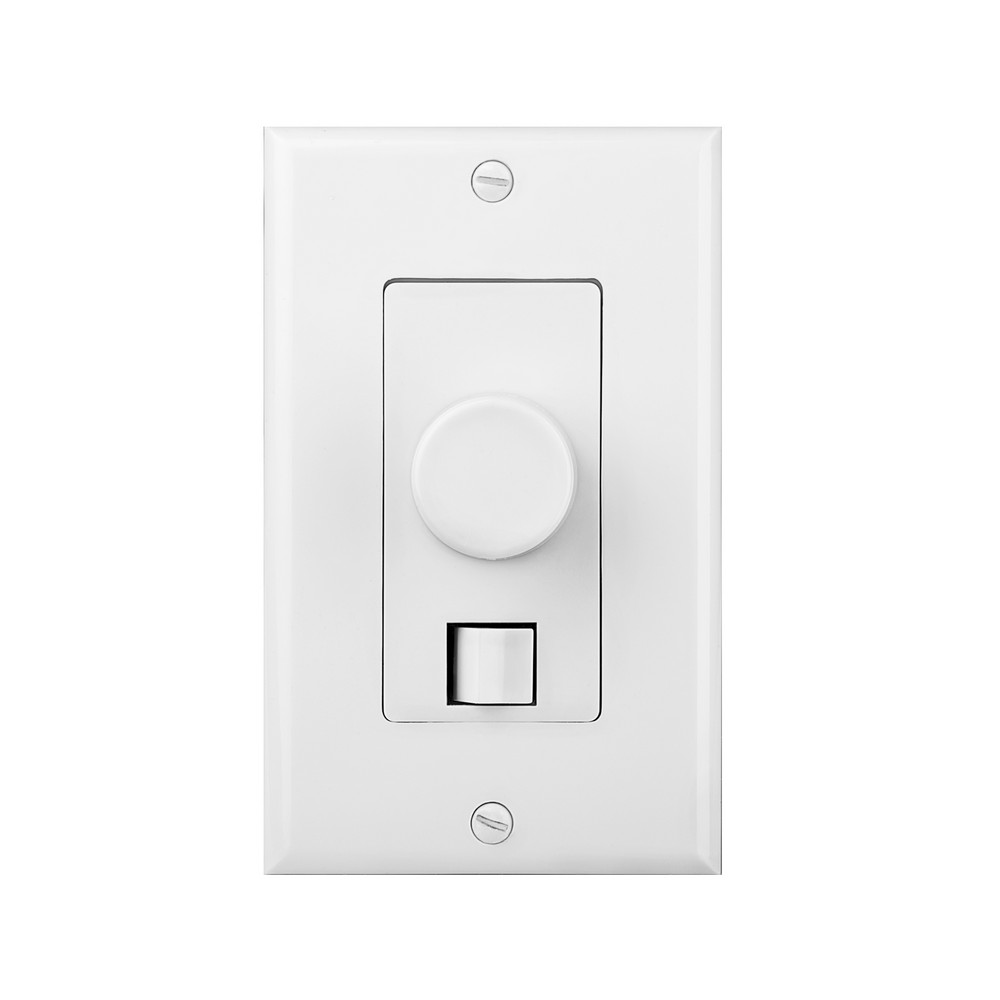

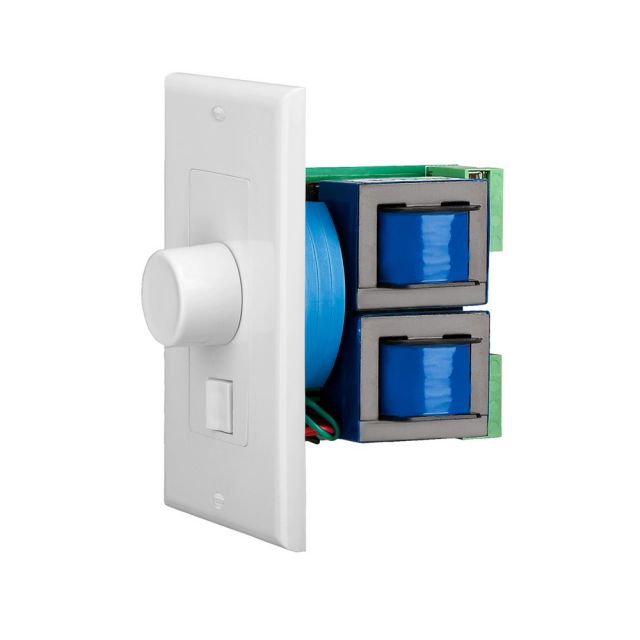

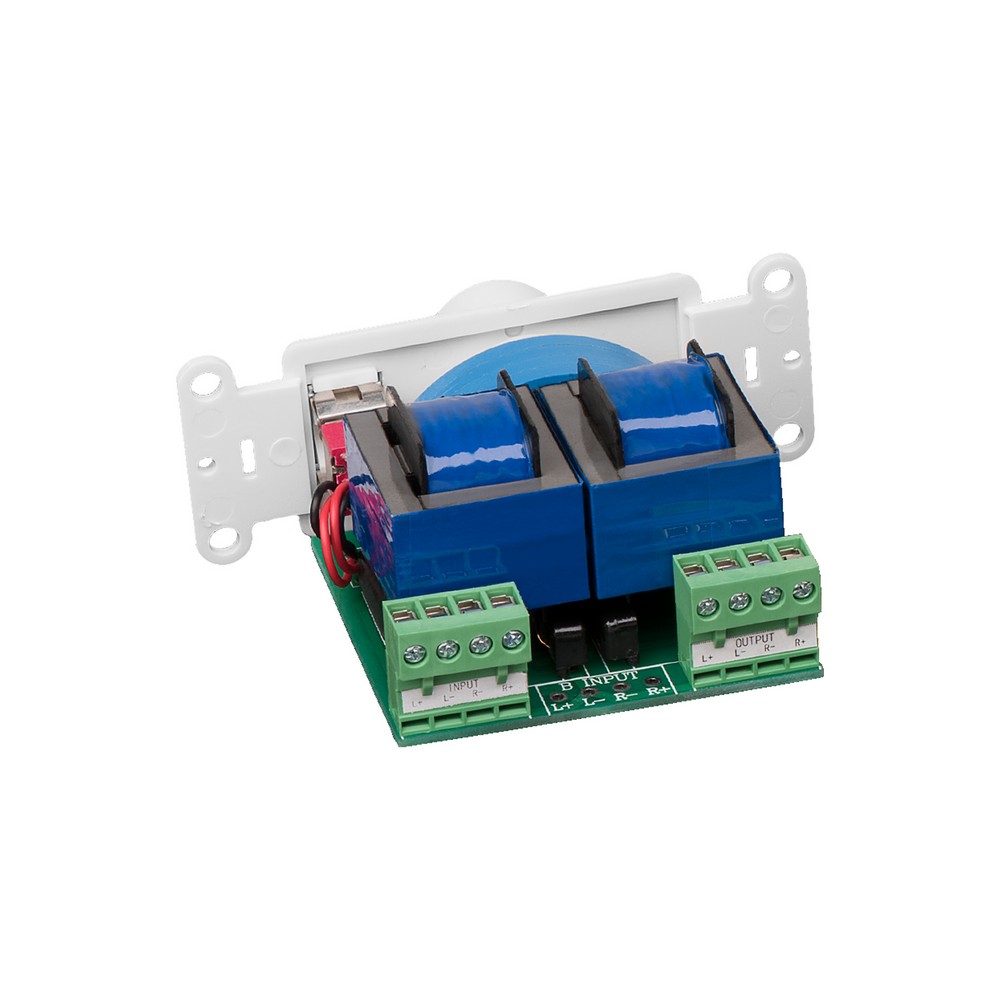

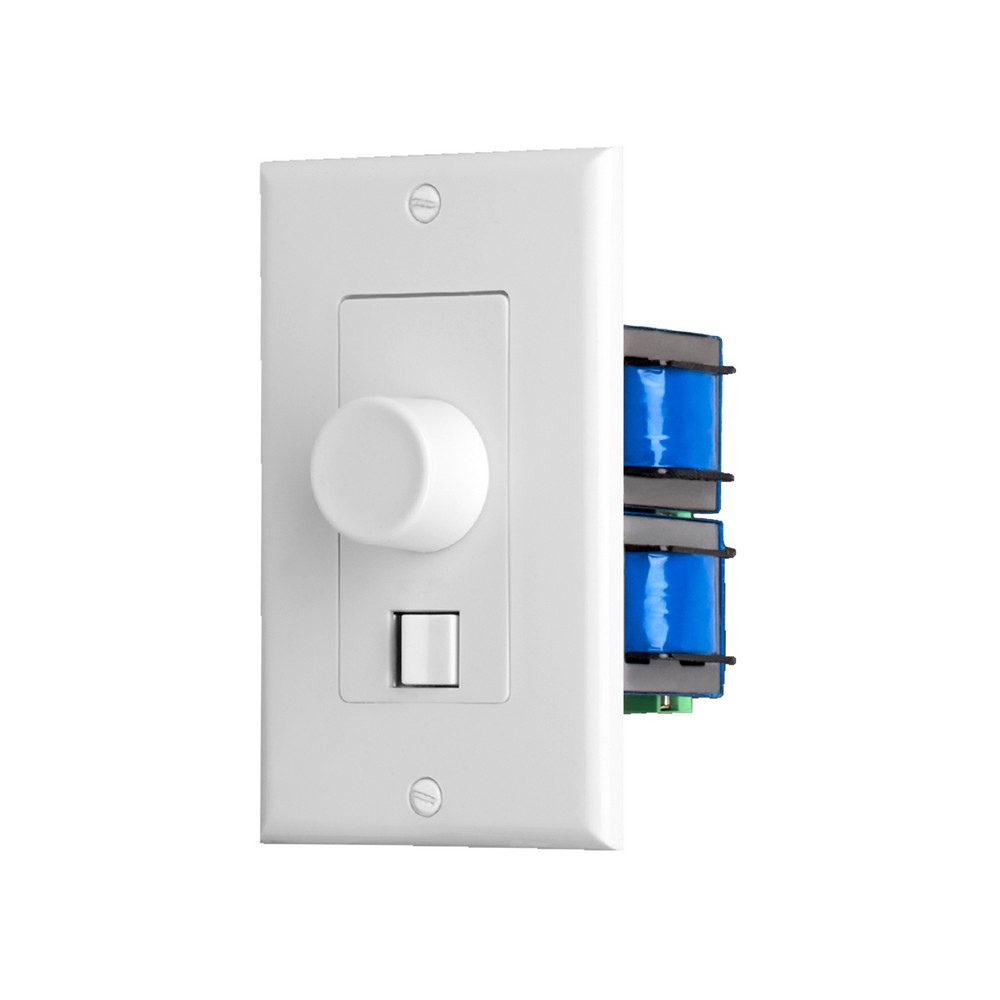

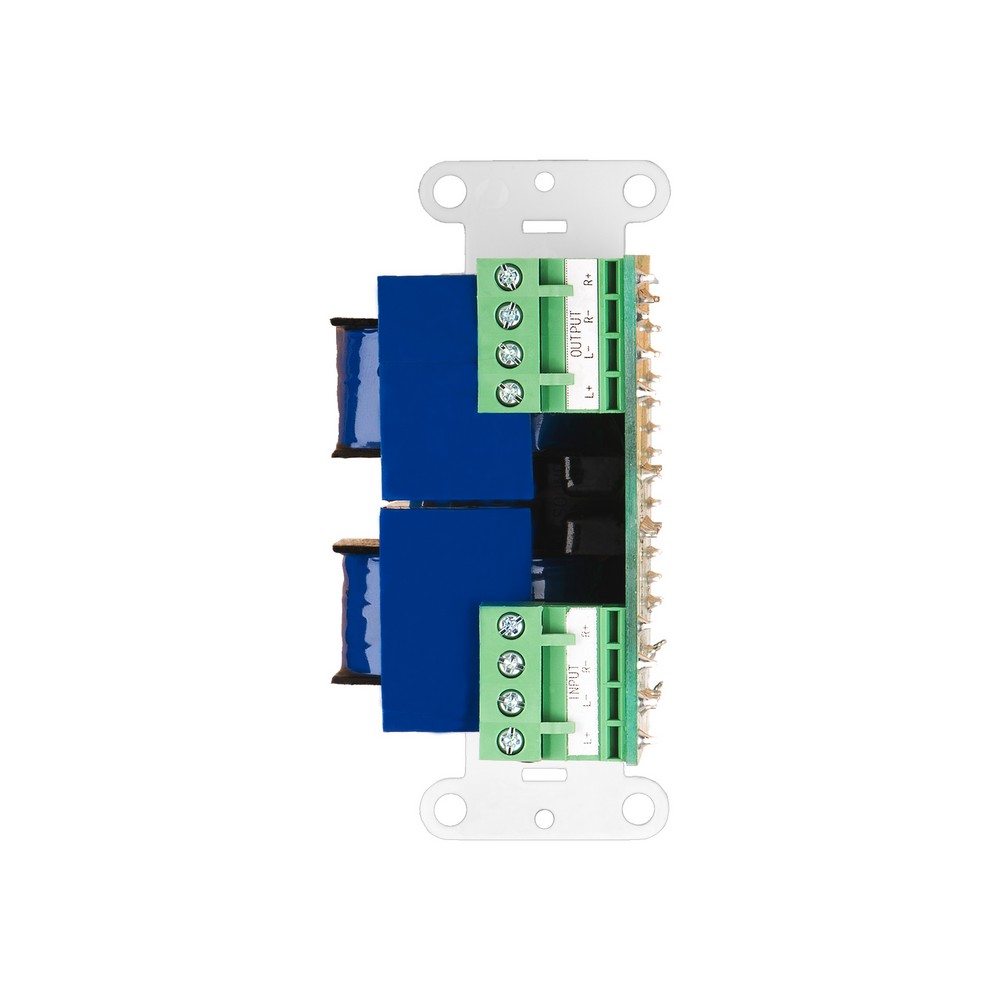

OSD SVC205 In-Wall Impedance Matching Volume Control with On/Off Switch
The OSD Audio SVC205 is a self-impedance matching in-wall volume controller with an on/off switch. Volume controls do not add gain (volume) to your speakers; they simply attenuate the volume up or down. During setup, you'll set the source volume to its optimum level, then the volume control turns the sound down to almost inaudible levels. The SVC205 is unique in that it let's you turn sound off completely.
Features
- Control volume from any room
- Low distortion and ruler flat frequency response
- All installation materials included
- Front-mounted setting switch and on/off switch
What Is Impedance Protection?
Speakers are specified by impedance, which is a measurement of resistance to alternating current, and a common value for speakers is 8 ohms. When you're connecting multiple speakers to a receiver or amplifier, you need to stay above the amp's minimum load requirements because going below the impedance rating can overheat or even damage expensive equipment. The SVC allows you to match the impedance with the number of speakers being controlled with the capabilities of your amp. A basic multi-room system will typically have an amplifier/receiver, a speaker selector, four to eight pairs of speakers, and volume controls. Impedance-matching volume controls feature three settings depending on how many speakers you are connecting. For one to two pairs of 8-ohm speakers, the setting is 1/2x; for three or four pairs of 8 ohm speakers, the setting is 4X. Keep in mind that volume controls do not add gain (volume) to your speakers but simply attenuate the volume up or down. During setup, you'll set the source volume to its optimum level, then the volume control turns the sound down to inaudible levels.
Warning: California's Proposition 65
Warning:
This product can expose you to chemicals, including vinyl chloride, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
View Product Information
4.8
Out of 5.0
Overall Rating
100%
of customers that buy this product give
it a 4 or 5-Star rating.
January 6, 2022 by Bernard (VA, United States)
โNiceโ
So far so good
September 26, 2013 by Pratik
โI purchased this switch because I wanted the on-off control in addition to adjusting the volume. I looked on the market and this was the only one I could find which was reasonably priced. Wired it up with no problems and seems to work well with my Sonos system. I had plenty of room inside my wall for the switch to fit and its wires. I will be purchasing several more for my home to wire them up.โ
Very Unique product!!
September 23, 2013 by Mike
โInitially, the product was out of stock. I was finally able to order it and it was delivered as promised. I understand how they could run out of this product as it is awesome! This device has made my home audio to easily be controlled from each area.โ
