Specifications
- SKU
- OSD-OVC305R-PAR

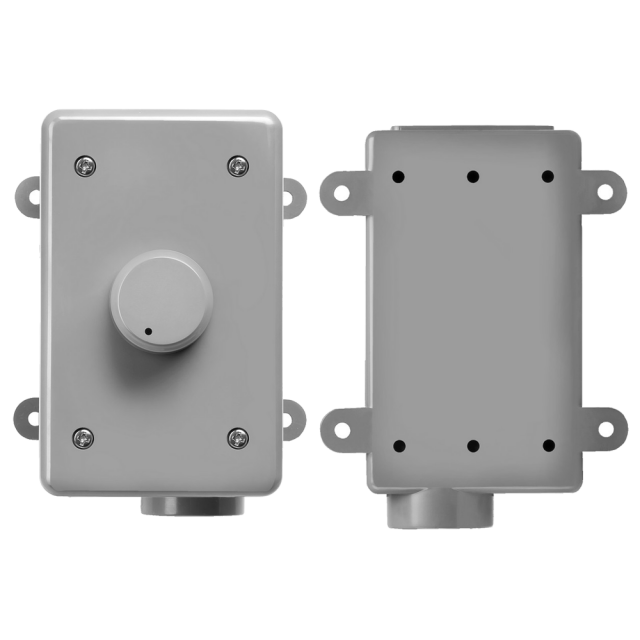

- Volume Control Type: Outdoor 300W Resistor Based Knob Style
- Power Handling: 300W Peak; 150W RMS Per Channel
- Frequency Response: 20Hz - 20kHz
- Total Attenuation: -36 dB (Max)
- Steps: 11 Step Attenuation, Last Click Disconnects (Turn Off)
- Resistor Based, NOT Impedance-Matching!
- Wiring Requirement: Up to 14 Gauge Wire
- Weather-Resistant for Outdoor Use
- Can Withstand -50F / +130F Degree Weather

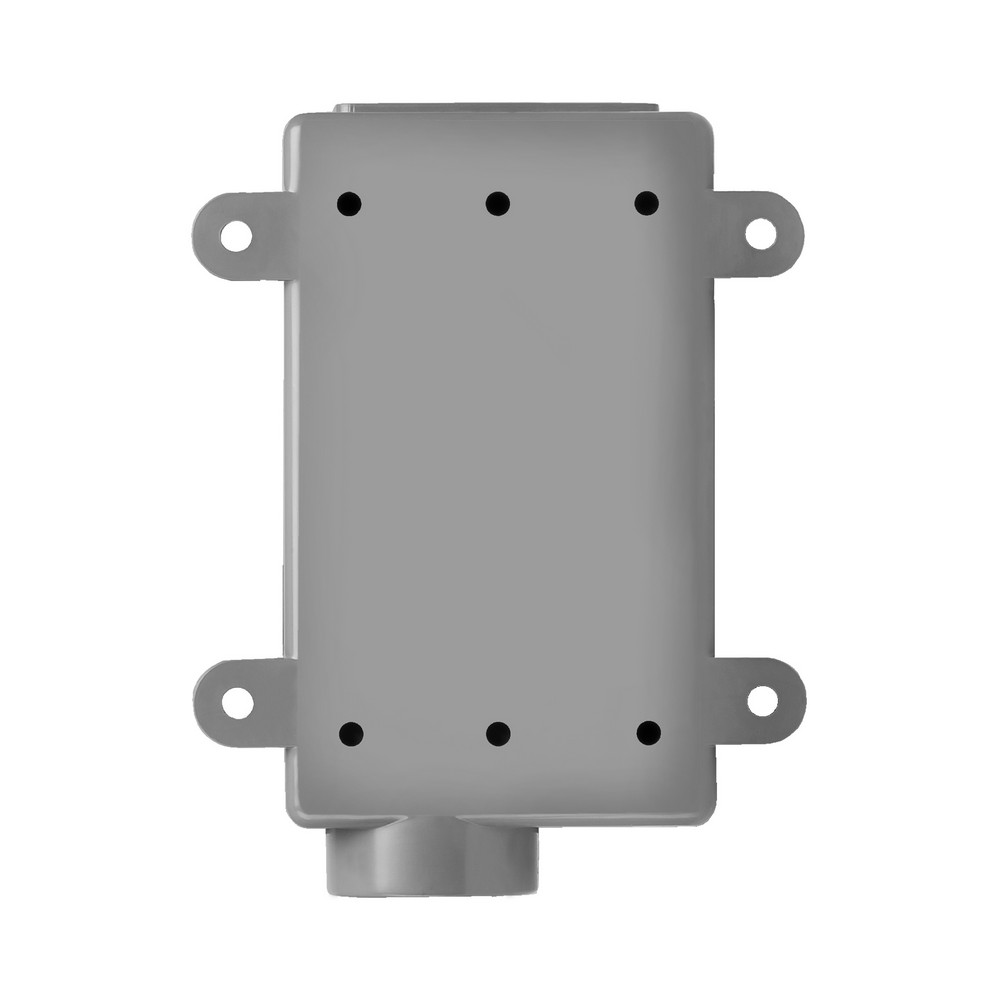

- Mounting Options: Use 3/4" PVC Conduit Pipe to Stand Alone or Mount to the Wall
- Unit Dimensions: (L x H x D) 3.25" x 4.37" x 3"
- Colors Available: Grey or White
- Warranty: 5 Years
Description

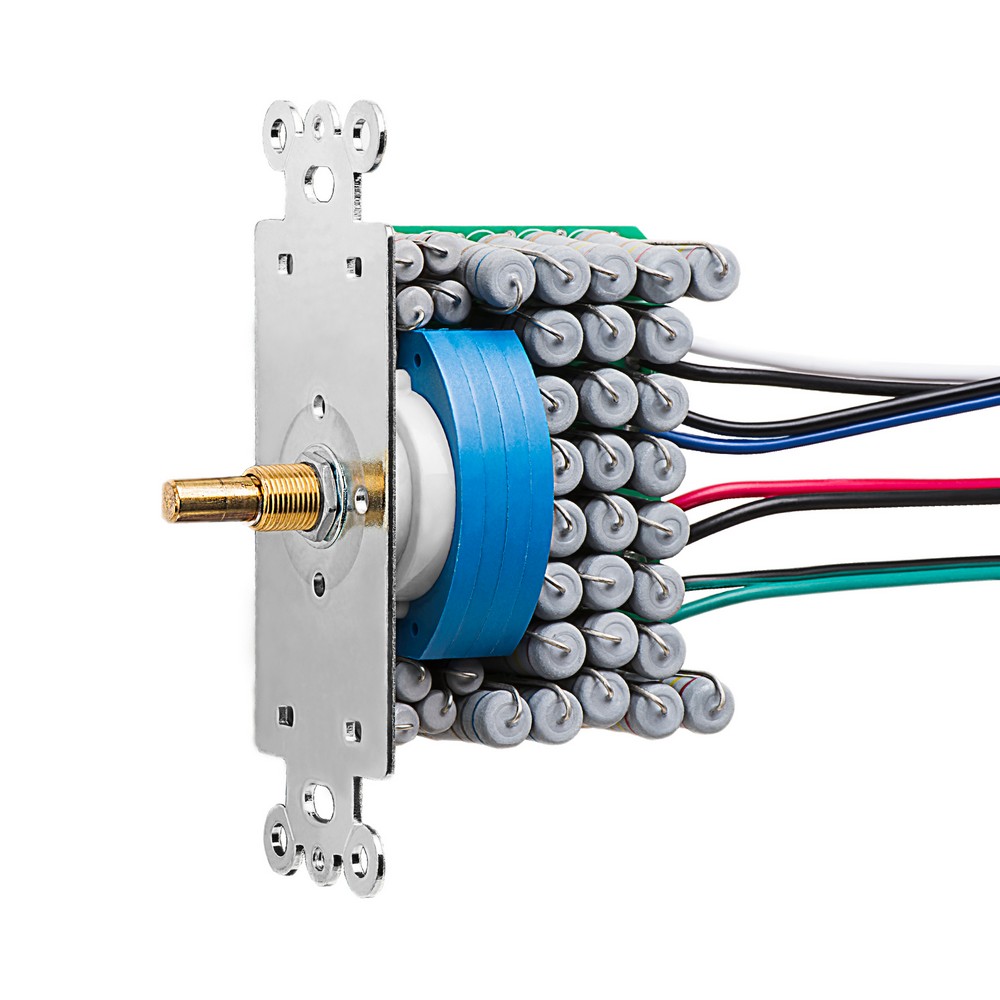

This super sturdy, easy to install outdoor volume control can be used for one pair (two speakers). A pure resonance resistor-based volume control, it can handle up to 300 watts of optimal sound with minimal bass roll-off. The control board is prewired and the wires are clearly labeled, making installation easy, and this product can take the rigors of outdoor environments. You can use these along with one of our speaker selectors for a whole-house audio system at an affordable price.
Attention: This is not a impedance-matching type volume control.
Warning: California's Proposition 65
Warning:
This product can expose you to chemicals, including vinyl chloride, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Manuals
Complete Your System
Reviews
Customers say
Generated by AI from 22 customer reviews
Customers say this volume control is easy to install, with clearly labeled wires and long leads that make setup a breeze. They also praise its sturdy build quality and note it feels high quality for the price. Many find it user friendly and easy to use with additional speakers.
"wires from the unit were clearly labeled making setup a breeze"
"Mine came with long leads already attached - even better!"
"Good connections and quality component"
"Construction seems sturdy and durable"
"high quality of this product considering its low price"
"Super high quality feel and sound at a great price"
"It worked so well that I added more speakers and an amp"
"most user friendly that I could have imagined"
Reviews for Outdoor Speaker Depot are collected and verified by Shopper Approved. Read our verified customer reviews.
Bought this? Shopper Approved will email you a link to review it after your purchase.
Questions & Answers
30 Questions asked
What's on your mind?
Brent • 12/17/2019, 2:17:43 PM
I bought these volume controls, the wires are labeled input and output but does not inicate positive and negative, I used the wire with the sripe for neg and everything sounds terrible. Did I get the polarity wrong, please advise
Customer Service • 12/17/2019, 2:17:43 PM
Brent,
I emailed you a diagram now.
CL
Brent McDaniel • 12/17/2019, 2:17:43 PM
trying to find out which wires are pos and neg have been waiting for response, your customer service is no service. you have been holding up my project and you make no attempt to return phone calls. I have left numerous messages, you have made no attempt to contact me!!!!!!!!!!!!!!!!!! very unhappy customer in houston
Customer Service • 12/17/2019, 2:17:43 PM
Brent,
I emailed you a diagram now. It goes on the LEFT + - (output) + - (input ) then on the RIGHT + - (input) then + - (output)
CL
Thomas • 12/17/2019, 2:17:43 PM
If the white stickers ripped of the wires, how can you tell the input wires to the volume control? Is this possible without opening up the control box? I can see one pair of the white/black wires says input but I do not want to assume the other white/black pair is the other input.
Thank you
Customer Service • 12/17/2019, 2:17:43 PM
Hi Thomas,
Please remove the faceplate of the unit by unscrewing the four screws and then remove the knob (it slides off). There is a rubber nut you must unscrew (we find it helpful to use a pair of needle-nose pliers for this). Take off the faceplate and press the wires in one by one to determine which set is on top. The top wires are the outputs. The bottom wires are the inputs. I will email you a picture of the OVC305R with the white labels so you can see which are positive and negative.
CL/MA
Peter • 12/17/2019, 2:17:43 PM
Is the lowest step 'off' on these or is it -36 thus leaving the speakers on? Description says 12 steps, brochure says 11 steps.
Customer Service • 12/17/2019, 2:17:43 PM
Hi Peter,
Thank you for pointing that out. The correct spec should be 11-step at 36 dB attenuation. At the bottom setting (all the way counter clockwise), the volume control is completely disconnected (off). The design of the resistor-based is “Break before Make” so there is no connection between clicks. On the upside, the resistor-based volume control has a broader frequency response and typically better sound quality; however, it does not do impedance matching.
TL
/MA
Peter • 12/17/2019, 2:17:43 PM
The specs on the web page say:
-54dB, 12 step attenuation
Resistor Based
but the Product spec sheet says:
-36, 11 Step
for the OVC305R
Which is correct and does the lowest step turn the sound off?
Customer Service • 12/17/2019, 2:17:43 PM
Hi Peter,
Hi Peter:
Thank you for pointing that out. The correct spec should be 11-step at 36 dB attenuation. At the bottom setting (all the way counter clockwise), the volume control is completely disconnected (off). The design of the resistor-based is “Break before Make” so there is no connection between clicks. On the upside, the resistor-based volume control has a broader frequency response and typically better sound quality; however, it does not do impedance matching.
TL/MA
