SKU: OSD-AP650-PAR
OSD AP6506.5" Outdoor Patio Speaker Pair w/ Optional 70V Tap, IP54 Rated, White or Black
The OSD Audio AP650 outdoor patio speaker pair is the perfect choice for enhancing your outdoor audio experience. With an IP54 rating for protection against dust and water, these speakers feature a frequency response of 35Hz to 22kHz +/- 10dB, power handling of 150W, and sensitivity of 90 dB. The gold-plated spring-loaded binding posts ensure a secure connection. The powder-coated rust-resistant aluminum grille, ABS polymer enclosure and full motion bracket make these speakers durable for outdoor use and easy to install in any position. The 6.5-inch water resistant paper cone woofer provides full sound and deep, rich bass. These speakers are perfect for patios, decks and overhangs and are safe from pool chemicals. They are sold as a pair and available in black or white, and comes with a 1-year warranty.
Features:

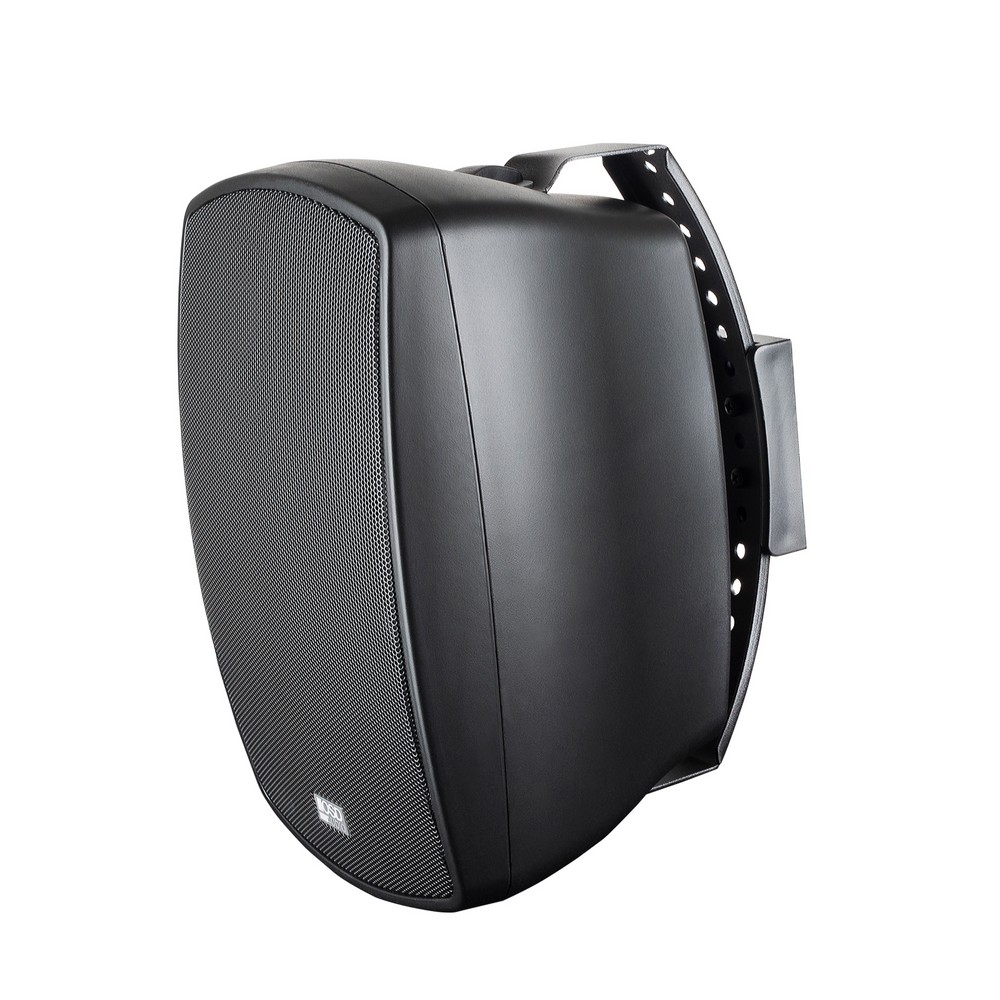

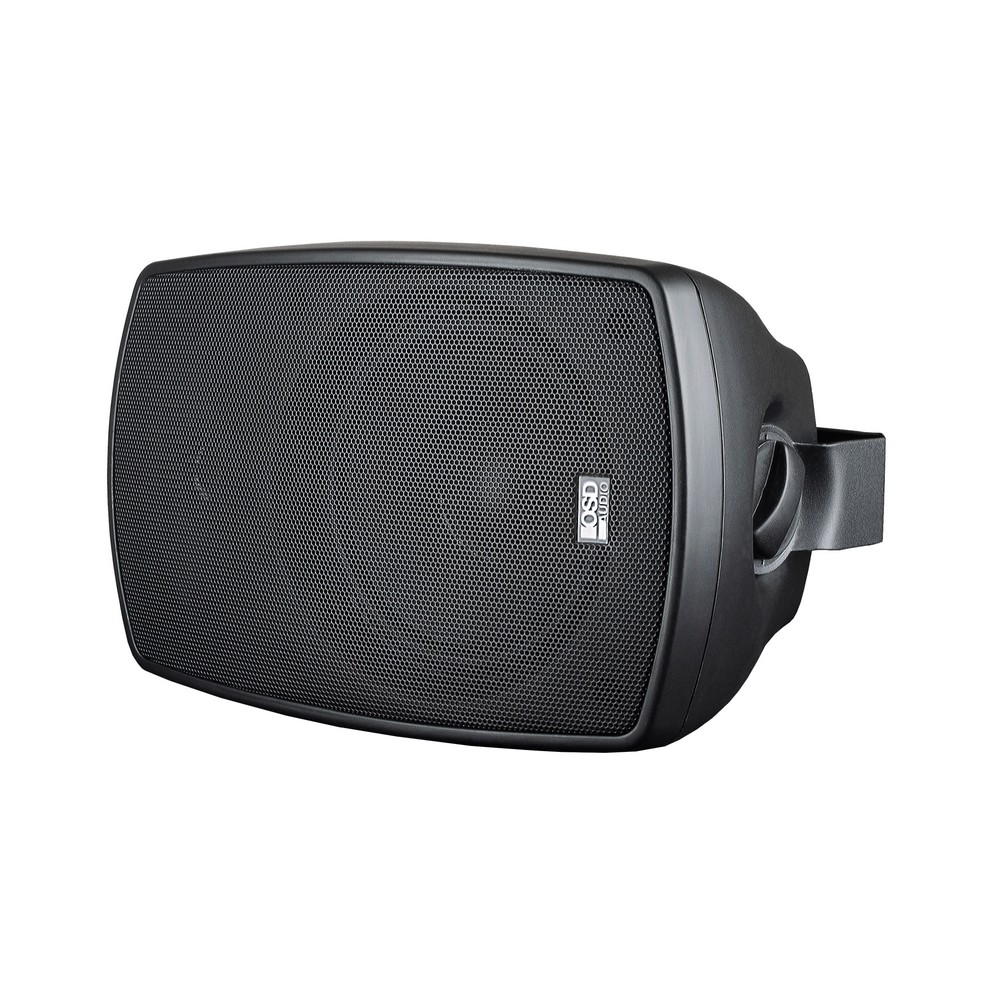

- Mounting bracket is designed to mount either vertically or horizontally
- Available with 70V switch for commercial installations
- Gold-plated spring compression binding posts for optimum connectivity
- Sturdy ABS polymer frame
- Powder-coated rust-resistant aluminum grille
Warning: California's Proposition 65
Warning:
This product can expose you to chemicals, including vinyl chloride, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
- Speaker Type: 6.5" Indoor/ Outdoor Patio Speakers, 70V Optional
- IP54 Rated
- Woofer: 6.5" Water Resistant Paper Cone Woofer
- Tweeter: 1" Silk Dome
- Frequency Response: 35Hz to 22kHz +/- 10dB
- Power handling: 150W
- Sensitivity: 90 dB
- Impedance: 8 Ohms w/ Optional 70V Transformer Built-In
- 70V Taps: 32W, 16W, 8W and 4W
- Gold-Plated Spring-Loaded Binding Posts
- Powder-coated Rust-resistant Aluminum Grille

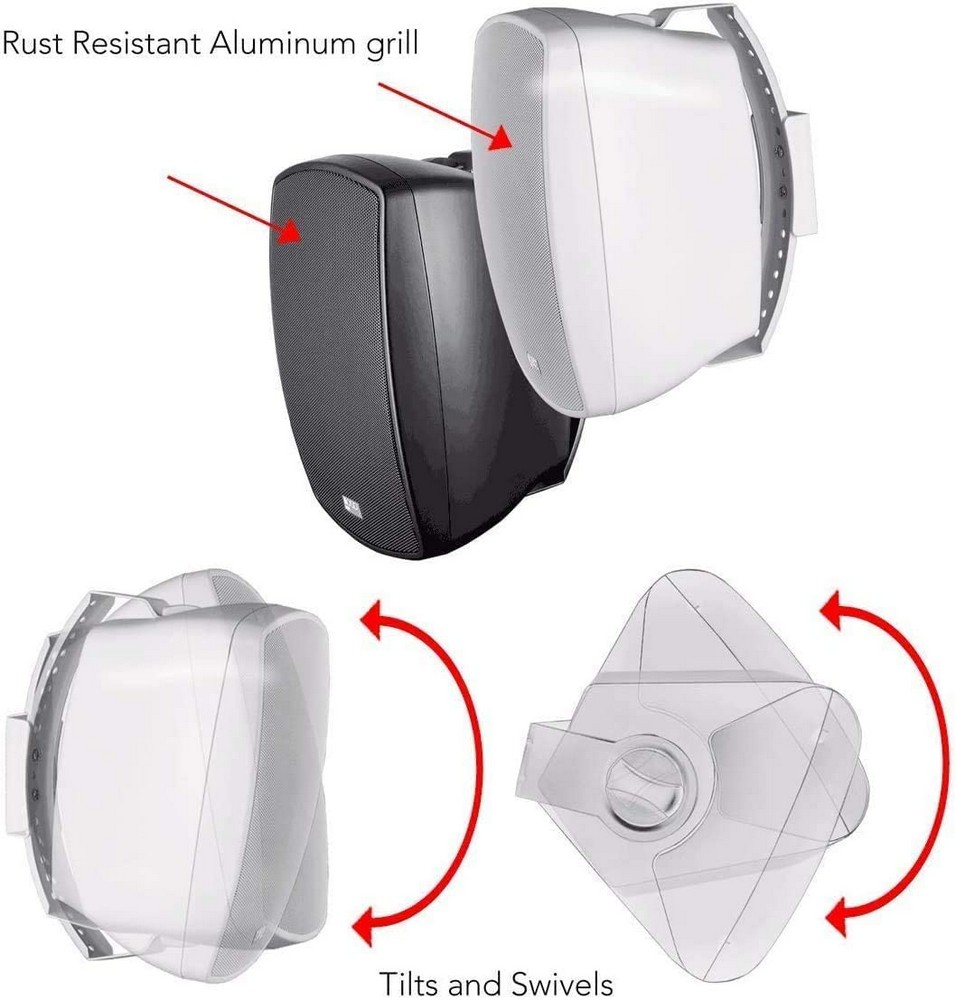

- Full Motion Bracket

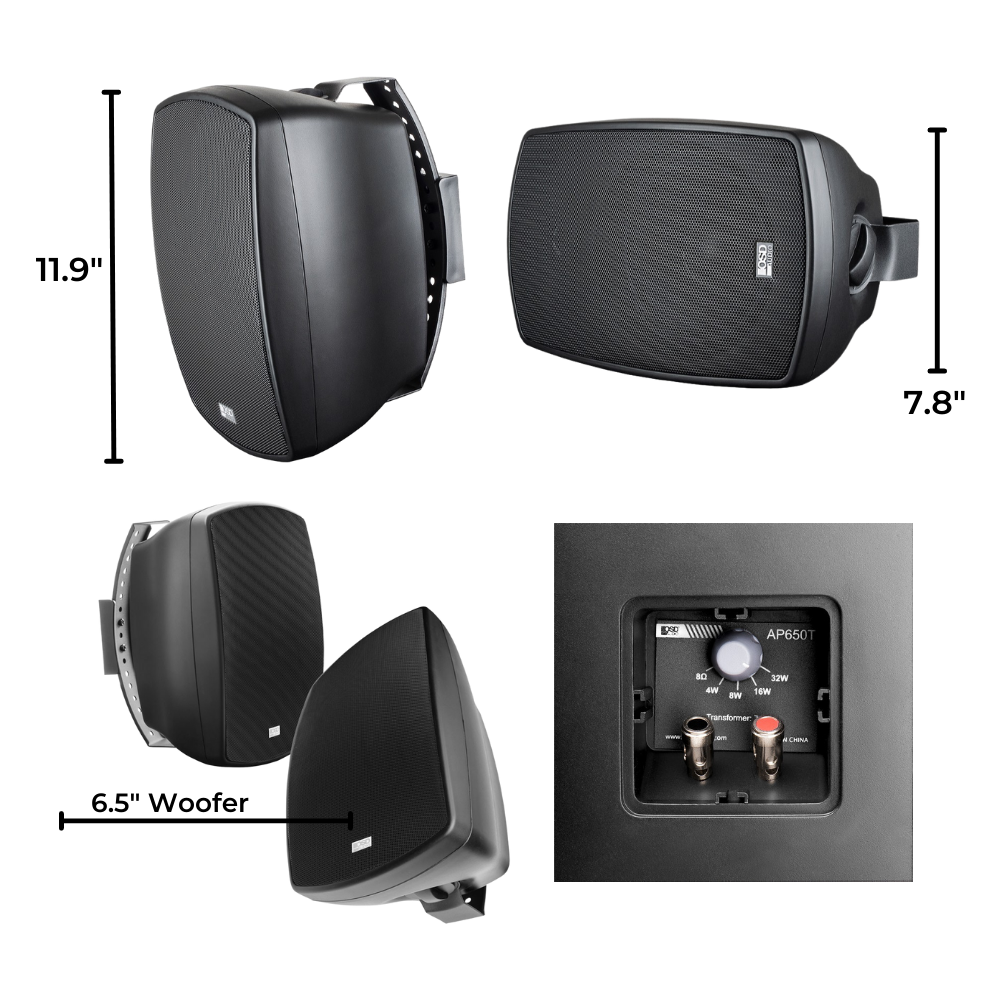

- Unit Dimensions: (L x H x D) 11.9" x 7.8" x 7.6"
- Sold As: Pair
- Colors Available: Black / White
- Weight: 9 lbs Each Speaker
- Warranty: 1 year
View Owner's Manual 93 Questions asked
Have a Questions?
What's on your mind?
Diana • 12/17/2019, 2:17:43 PM Can these speakers be mounted from the ceiling of an overhang?
Customer Service • 12/17/2019, 2:17:43 PM
Absoluetly! The bracket allows the speaker to be aimed up to 90 degrees either way.
MA/TL John stone • 12/17/2019, 2:17:43 PM Are the outdoor speakers waterproof? I want to mount them on the side of my house but I don't want to if they are not water proof.
Customer Service • 12/17/2019, 2:17:43 PM
All of our patio speakers are weatherproof - that means it can withstand the weather, but it is always a good idea to have some kind of cover above the speakers.
Waterpoof means the speaker can submerge under the water. I don't think any outdoor speakers in the market can do that. abd1 • 12/17/2019, 2:17:43 PM can these be mounted horizontally as well as vertically?
Customer Service • 12/17/2019, 2:17:43 PM
Hi:
No problem mounting these horizontially. It states the mounting bracket will swivel 180 degrees giving you maximum flexibility as well.
TL Dean Kajohn • 12/17/2019, 2:17:43 PM What does the 70v option mean
Customer Service • 12/17/2019, 2:17:43 PM
HI Dean,

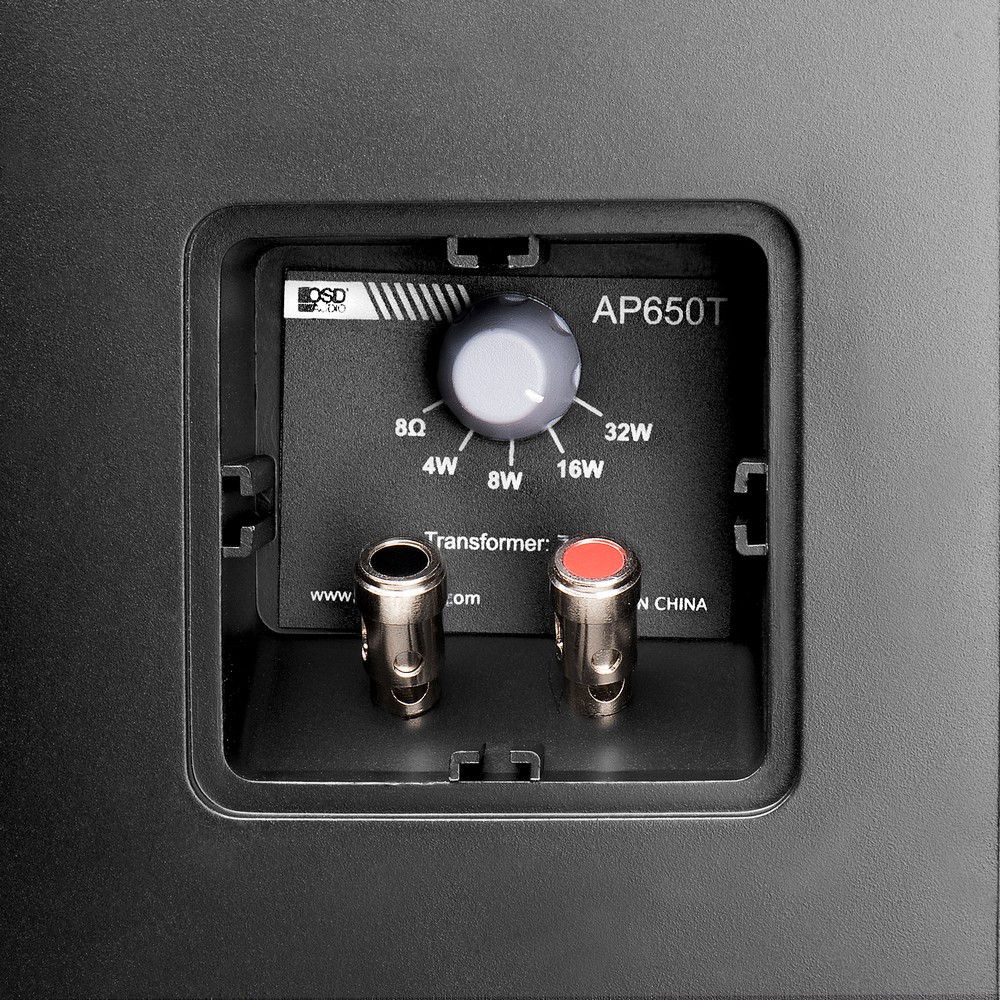

The 70v option allows the speaker to be used with a 70 volt commercial amplifier. It has an 8-ohm setting for connecting to a standard two-channel amplifier. We do offer this speaker as an 8 ohm version as well (same price) without the 70v transformer. Check out the images on the page that show the selector switch on the back. You can see that there are six settings: 8 ohm, 25W, 15W, 10W, 5w and 2.5W. The five 70v settings have to do with how many speakers can be connected based upon how many Watts the system is rated. If you use a 60-Watt 70 volt system and set the speakers to 5 Watts, then you can connect 12 individual 70v speakers in mono. These 70v systems are typically used in business offices, restaurants, and bars for background music.
TL/MA Dean • 12/17/2019, 2:17:43 PM If I am using these in a 70V system (at 20 watt tap aprox.)
What is difference between AP650 and AP640T?
Customer Service • 12/17/2019, 2:17:43 PM
Hi Dean,
Running a 70V system is usually a compromise versus an 8-ohm system. It is more application driven usually in order to connect multiple speakers without the worry of over driving the amp or receiver. It is typically used in background music and very popular for commercial applications. You would notice a bigger difference in sound quality between the two speakers in an 8-ohm setup and not so much in the 70V. So the AP640T might be a better value for the 70V system. Good luck!
